CNIP Xtra Strength SHH Chains

CNIP Xtra Strength SHH Chains use link plates that, in most cases, are equal in thickness to the plates used in the next larger size of CNIP Xtra Strength SPH Chains Its pins are also thru hardened The use of higher grade materials results in chains that have greater ultimate tensile strength and allowable load than CNIP Xtra Strength SH Chains CNIP.

Xtra-Strength-SHH-Chains-s

SKF-Xtra-Strength-SHH-Chains

CNIP Xtra Strength SHH Chains

Chain number Dimensions Ultimate tensile strength Average tensile strength Weight per meter Designation

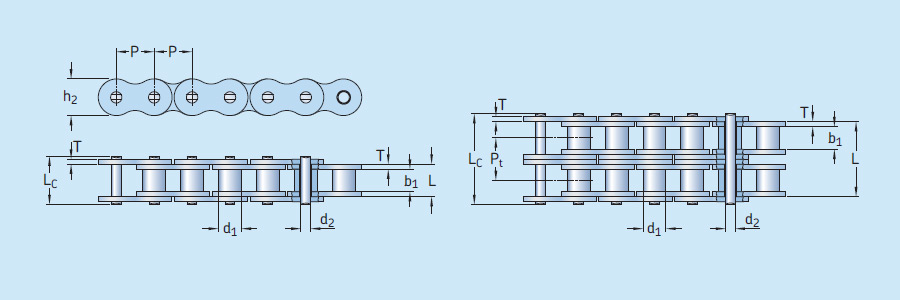

Pitch Roller diameter Width between inner plates Pin diameter Pin length Inner plate height Plate thickness Transverse pitch
P d1 max b1 min d2 max L max LC max h2 max T max Pt Q min Q0 q
– mm kN kg/m –
80SHH-1 25,400 15,88 15,75 7,94 36,2 38,9 24,10 4,00 - 89,2 98,1 3,36 PHC 80SHH-1X…
100SHH-1 31,750 19,05 18,90 9,54 43,6 46,9 30,10 4,80 – 131,8 145,0 4,90 PHC 100SHH-1X…
120SHH-1 38,100 22,23 25,22 11,11 53,5 57,5 36,20 5,60 - 176,0 196,0 7,12 PHC 120SHH-1X…
140SHH-1 44,450 25,40 25,22 12,71 57,6 62,2 42,20 6,40 – 231,9 255,0 8,88 PHC 140SHH-1X…
160SHH-1 50,800 28,58 31,55 14,29 68,2 73,0 48,20 7,20 - 294,5 324,0 11,72 PHC 160SHH-1X…
200SHH-1 63,500 39,68 37,85 19,85 86,6 93,5 60,30 9,50 - 543,6 598,0 19,80 PHC 200SHH-1X…
240SHH-1 76,200 47,63 47,35 23,81 109,6 115,9 72,35 12,70 - 801,7 922,0 32,25 PHC 240SHH-1X…
80SHH-2 25,400 15,88 15,75 7,94 68,8 72,0 24,10 4,00 32,59 178,4 196,2 6,65 PHC 80SHH-2X…
100SHH-2 31,750 19,05 18,90 9,54 82,7 86,0 30,10 4,80 39,09 263,6 290,0 9,71 PHC 100SHH-2X…
120SHH-2 38,100 22,23 25,22 11,11 102,4 106,4 36,20 5,60 48,87 356,4 392,0 14,12 PHC 120SHH-2X…
140SHH-2 44,450 25,40 25,22 12,71 109,8 114,4 42,20 6,40 52,20 463,6 510,0 17,38 PHC 140SHH-2X…
160SHH-2 50,800 28,58 31,55 14,29 130,1 134,9 48,20 7,20 61,90 588,0 647,0 23,00 PHC 160SHH-2X…
200SHH-2 63,500 39,68 37,85 19,85 164,9 171,8 60,30 9,50 78,31 1091,0 1200,0 38,50 PHC 200SHH-2X…
240SHH-2 76,200 47,63 47,35 23,81 211,0 217,3 72,35 12,70 101,22 1603,4 1763,0 68,18 PHC 240SHH-2X…
80SHH-3 25,400 15,88 15,75 7,94 101,4 104,6 24,10 4,00 32,59 267,6 294,3 9,95 PHC 80SHH-3X…
100SHH-3 31,750 19,05 18,90 9,54 121,8 125,1 30,10 4,80 39,09 395,4 435,0 14,53 PHC 100SHH-3X…
120SHH-3 38,100 22,23 25,22 11,11 151,2 155,2 36,20 5,60 48,87 534,5 588,0 21,12 PHC 120SHH-3X…
140SHH-3 44,450 25,40 25,22 12,71 162,0 166,6 42,20 6,40 52,20 695,5 765,0 25,88 PHC 140SHH-3X…
160SHH-3 50,800 28,58 31,55 14,29 192,0 196,8 48,20 7,20 61,90 882,7 971,0 34,22 PHC 160SHH-3X…
200SHH-3 63,500 39,68 37,85 19,85 243,2 250,1 60,30 9,50 78,31 1627,3 1790,0 57,29 PHC 200SHH-3X…
240SHH-3 76,200 47,63 47,35 23,81 312,0 318,3 72,35 12,70 101,22 2405,1 2645,0 92,45 PHC 240SHH-3X…
