| Chain number | Dimensions | Ultimate tensile strength | Average tensile strength | Weight per meter | Designation | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

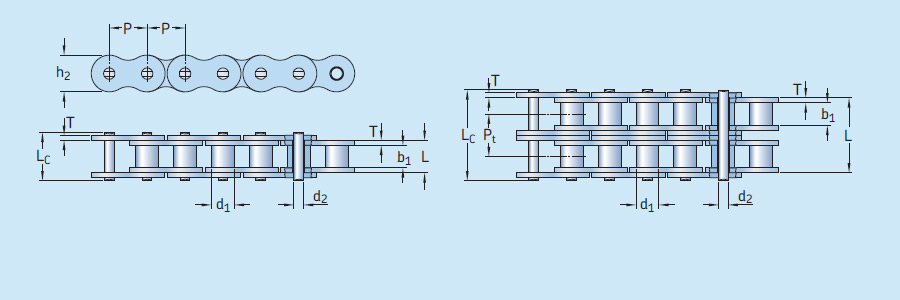

| Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate height | Plate thickness | ||||||
| P | d1 max | b1 min | d2 max | L max | LC max | h2 max | T max | Q min | Q2 min | q | ||
| – | mm | kN | kg/m | – | ||||||||
| 25SH-1* | 6,35 | 3,3 | 3,18 | 2,01 | 9,0 | – | 6,00 | 2,01 | 5,09 | 5,6 | 2,17 | PHC 25SH-1X… |
| 35SH-1* | 9,525 | 5,08 | 4,77 | 3,58 | 13,3 | 14,3 | 9,00 | 1,50 | 11,00 | 13,6 | 0,41 | PHC 35SH-1X… |
| 40SH-1 | 12,700 | 7,95 | 7,85 | 3,96 | 18,8 | 19,9 | 12,00 | 2,03 | 22,40 | 24,8 | 0,82 | PHC 40SH-1X… |
| 50SH-1 | 15,875 | 10,16 | 9,40 | 5,08 | 22,1 | 23,4 | 15,09 | 2,42 | 30,40 | 36,2 | 1,25 | PHC 50SH-1X… |
| 60SH-1 | 19,050 | 11,91 | 12,57 | 5,94 | 29,2 | 31,6 | 18,00 | 3,25 | 44,10 | 50,4 | 1,87 | PHC 60SH-1X… |
| 80SH-1 | 25,400 | 15,88 | 15,75 | 7,92 | 36,2 | 37,7 | 24,00 | 4,00 | 88,20 | 93,0 | 3,10 | PHC 80SH-1X… |
| 100SH-1 | 31,750 | 19,05 | 18,90 | 9,53 | 43,6 | 46,9 | 30,00 | 4,80 | 116,60 | 129,1 | 4,52 | PHC 100SH-1X… |
| 120SH-1 | 38,100 | 22,23 | 25,22 | 11,10 | 53,5 | 57,5 | 35,70 | 5,60 | 158,20 | 175,3 | 6,60 | PHC 120SH-1X… |
| 140SH-1 | 44,450 | 25,40 | 25,22 | 12,70 | 57,6 | 62,2 | 41,00 | 6,40 | 206,00 | 266,5 | 8,30 | PHC 140SH-1X… |
| 160SH-1 | 50,800 | 28,58 | 31,55 | 14,27 | 68,2 | 73,0 | 47,80 | 7,20 | 274,00 | 293,0 | 10,30 | PHC 160SH-1X… |
| 200SH-1 | 63,500 | 39,68 | 37,85 | 19,85 | 86,6 | 93,5 | 60,00 | 9,50 | 506,10 | 562,3 | 19,16 | PHC 200SH-1X… |
| 240SH-1 | 76,200 | 47,63 | 47,35 | 23,81 | 109,6 | 115,9 | 72,30 | 12,70 | 650,00 | 715,0 | 32,81 | PHC 240SH-1X… |
