CNIP Xtra Strength H and BH chains

CNIP Xtra Strength H and BH chains differ from the respective ANSI and BS/DIN chains slightly, due to using the plate thickness of the next larger size of ANSI roller chains Therefore, H and BH series chains can accommodate approximately 10% higher shock loads The ultimate tensile strength will be the same as a standard ANSI chain CNIP Xtra Strength H and BH chains are well suited for applications where shock loads are higher, operating speeds are lower or there are other severe operating conditions.

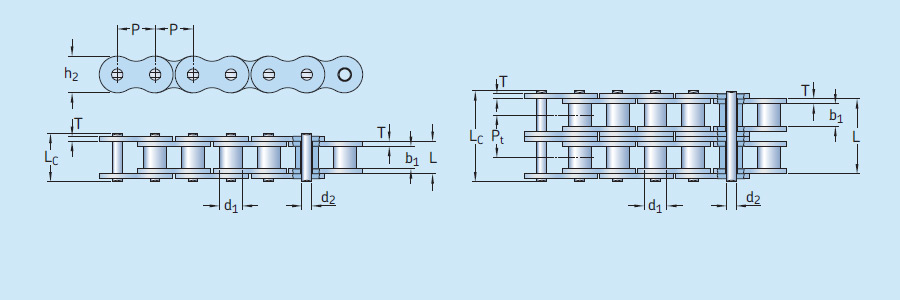

SKF-Xtra-Strength-H-BH-Chains

CNIP Xtra Strength H & BH Chains

ANSI Chain number BS/ISO Chain number Dimensions Ultimate tensile strength Average tensile strength Weight per meter Designation
Pitch Roller diameter Width between inner plates Pin diameter Pin length Pin length cottered Inner plate height Plate thickness Transverse pitch
P d1 max b1 min d2 max L max LC max LC max h2 max T max Pt max Q min Q0 max q
– – mm kN kg/m –
35H-1* – 9,525 5,08 4,77 3,58 13,3 14,3 – 9,0 1,50 – 7,9 10,8 0,41 PHC 35H-1…
40H-1 08AH-1 12,700 7,95 7,85 3,96 18,8 19,9 – 12,00 2,03 – 14,1 19,1 0,82 PHC 40H-1…
50H-1 10AH-1 15,875 10,16 9,40 5,08 22,1 23,4 24,4 15,09 2,42 – 22,2 30,2 1,25 PHC 50H-1…
60H-1 12AH-1 19,050 11,91 12,57 5,94 29,2 31,0 31,6 18,00 3,25 – 31,8 42,7 1,87 PHC 60H-1…
80H-1 16AH-1 25,400 15,88 15,75 7,92 36,2 37,7 39,4 24,00 4,00 – 56,7 71,4 3,10 PHC 80H-1…
100H-1 20AH-1 31,750 19,05 18,90 9,53 43,6 46,9 46,9 30,00 4,80 - 88,5 112,4 4,52 PHC 100H-1…
120H-1 24AH-1 38,100 22,23 25,22 11,10 53,5 57,5 57,5 35,70 5,60 - 127,0 160,9 6,60 PHC 120H-1…
140H-1 28AH-1 44,450 25,40 25,22 12,70 57,6 62,2 62,2 41,00 6,40 - 172,4 217,3 8,30 PHC 140H-1…
160H-1 32AH-1 50,800 28,58 31,55 14,27 68,2 73,0 73,0 47,80 7,20 - 226,8 285,8 10,30 PHC 160H-1…
180H-1 36AH-1 57,150 35,71 35,48 17,46 75,9 81,6 – 53,60 8,0 - 281,0 341,8 14,83 PHC 180H-1…
200H-1 40AH-1 63,500 39,68 37,85 19,85 86,6 93,5 93,5 60,00 9,50 - 353,8 444,5 19,16 PHC 200H-1…
240H-1 48AH-1 76,200 47,63 47,35 23,81 109,6 115,9 - 72,30 12,70 - 500,0 600,0 30,4 PHC 240H-1…
60H-2 12AH-2 19,050 11,91 12,57 5,94 55,3 57,1 57,7 18,00 3,25 26,11 63,6 84,5 3,71 PHC 60H-2…
80H-2 16AH-2 25,400 15,88 15,75 7,92 68,8 70,3 72,0 24,00 4,00 32,59 113,4 145,3 6,15 PHC 80H-2…
100H-2 20AH-2 31,750 19,05 18,90 9,53 82,7 86,0 86,0 30,00 4,80 39,09 177,0 225,9 9,03 PHC 100H-2…
120H-2 24AH-2 38,100 22,23 25,22 11,10 102,4 106,4 106,4 35,70 5,60 48,87 254,0 322,7 13,13 PHC 120H-2…
140H-2 28AH-2 44,450 25,40 25,22 12,70 109,8 114,4 114,4 41,00 6,40 52,20 344,8 437,7 16,60 PHC 140H-2…
160H-2 32AH-2 50,800 28,58 31,55 14,27 130,1 134,9 134,9 47,80 7,20 61,90 453,6 571,6 20,20 PHC 160H-2…
200H-2 40AH-2 63,500 39,68 37,85 19,85 164,9 171,8 171,8 60,00 9,50 78,31 707,6 894,9 38,11 PHC 200H-2…
240H-2 48AH-2 76,200 47,63 47,35 23,81 211,0 217,3 217,3 72,30 12,70 47,35 1000,0 1200,0 64,78 PHC 240H-2…
60H-3 12AH-3 19,050 11,91 12,57 5,94 81,4 83,2 83,8 18,00 3,25 26,11 95,4 113,9 5,54 PHC 60H-3…
80H-3 16AH-3 25,400 15,88 15,75 7,92 101,4 102,9 104,6 24,00 4,00 32,59 170,1 203,5 9,42 PHC 80H-3…
100H-3 20AH-3 31,750 19,05 18,90 9,53 121,8 125,1 125,1 30,00 4,80 39,09 265,5 314,8 12,96 PHC 100H-3…
120H-3 24AH-3 38,100 22,23 25,22 11,10 151,2 155,2 155,2 35,70 5,60 48,87 381,0 444,7 19,64 PHC 120H-3…
140H-3 28AH-3 44,450 25,40 25,22 12,70 162,0 166,6 166,6 41,00 6,40 52,20 517,2 598,4 24,90 PHC 140H-3…
160H-3 32AH-3 50,800 28,58 31,55 14,27 192,0 196,8 196,8 47,80 7,20 61,90 680,4 787,3 30,10 PHC 160H-3…
200H-3 40AH-3 63,500 39,68 37,85 19,85 243,2 250,1 250,1 60,00 9,50 78,31 1061,4 1228,2 57,06 PHC 200H-3…
240H-3 48AH-3 76,200 47,63 47,35 23,81 312,0 318,3 318,3 72,30 12,70 47,35 1500,0 1650,0 70,53 PHC 240H-3…
