CNIP Xtra Corrosion Resistant Chains


Stainless steel chains

Stainless steel chains have superior corrosion resistance for the most demanding applications SKF offers a variety of such chains for applications where a high level of cleanliness is required or harsh chemicals are used SKF stainless steel chains are made from SS304 grade steel for high corrosion resistance and are available in BS and ANSI standards SS316 and other stainless steel grades are available for higher temperature applications The SS316 stainless steel is somewhat more resistant to the effects of magnetic permeability, temperature extremes and harsher chemicals.

Application

These chains are suitable for food processing, pharmaceutical, high/ low temp (–20 to 400 °C) and corrosive environments Stainless steel chains can be manufactured to withstand temperatures up to 1 000 °C with the addition of special lubricant.

extra-corosions
Dacrotised-and-plated-chains

SKF Xtra Corrosion Resistant Chains

Chain number Dimensions Ultimate tensile strength Weight per meter Designation
Pitch Roller diameter Width between inner plates Pin diameter Pin length Inner plate height Plate thickness
P d1 max b1 min d2 max L max LC max h2 max t max T max Q min q
– mm kN kg/m –
25-1SS1 6,350 3,30 3,18 2,31 7,90 8,40 6,00 0,80 0,80 2,5 0,15 PHC 25-1SS…
35-1SS1 9,525 5,08 4,77 3,58 12,40 13,17 9,00 1,30 1,30 5,5 0,33 PHC 35-1SS…
40-1SS 12,700 7,95 7,85 3,96 16,60 17,80 12,00 1,50 1,50 9,6 0,63 PHC 40-1SS…
41-1SS 12,700 7,77 6,25 3,58 13,75 15,00 9,91 1,30 1,30 6,0 0,46 PHC 41-1SS…
50-1SS 15,875 10,16 9,40 5,08 20,70 22,20 15,09 2,03 2,03 15,2 1,03 PHC 50-1SS…
60-1SS 19,050 11,91 12,57 5,94 25,90 27,70 18,00 2,42 2,42 21,7 1,51 PHC 60-1SS…
80-1SS 25,400 15,88 15,75 7,92 32,70 35,00 24,00 3,25 3,25 38,9 2,62 PHC 80-1SS…
100-1SS 31,750 19,05 18,90 9,53 40,40 44,70 30,00 4,00 4,00 60,0 3,94 PHC 100-1SS…
120-1SS 38,100 22,23 25,22 11,10 50,30 54,30 35,70 4,80 4,80 72,5 5,72 PHC 120-1SS…
140-1SS 44,450 25,40 25,22 12,70 54,40 59,00 41,00 5,60 5,60 94,0 7,70 PHC 140-1SS…
04B-1SS 6,000 4,00 2,80 1,85 6,80 7,80 5,00 0,60 0,60 2,0 0,11 PHC 04B-1SS…
05B-1SS 8,000 5,00 3,00 2,31 8,20 8,90 7,10 0,80 0,80 3,5 0,20 PHC 05B-1SS…
06B-1SS2 9,525 6,35 5,72 3,28 13,15 14,10 8,20 1,30 1,30 6,2 0,41 PHC 06B-1SS…
08B-1SS 12,700 8,51 7,75 4,45 16,70 18,20 11,80 1,60 1,60 12,0 0,70 PHC 08B-1SS…
10B-1SS 15,875 10,16 9,65 5,08 19,50 20,90 14,70 1,70 1,70 14,5 0,94 PHC 10B-1SS…
12B-1SS 19,050 12,07 11,68 5,72 22,50 24,20 16,00 1,85 1,85 18,5 1,16 PHC 12B-1SS…
16B-1SS 25,400 15,88 17,02 8,28 36,10 37,40 21,00 4,15 3,10 40,0 2,73 PHC 16B-1SS…
20B-1SS 31,750 19,05 19,56 10,19 41,30 45,00 26,40 4,50 3,50 59,0 3,73 PHC 20B-1SS…
24B-1SS 38,100 25,40 25,40 14,63 53,40 57,80 33,20 6,00 4,80 104,0 7,20 PHC 24B-1SS…
32B-1SS 50,800 29,21 30,99 17,81 66,00 71,00 42,00 7,00 6,00 150,0 10,22 PHC 32B-1SS…

Nickel-plated

Nickel-plated roller chains combine the strength of standard roller chains with the corrosion resistant properties that come from the nickel-plating Nickel-plating of all components prior to assembly promotes uniform coverage during the plating process.

Application

Nickel-plated chains are not suitable in applications that may involve contact with food.

nickel

Zinc-plated

Zinc-plated roller chains provide a very good adherence of the plating to the base metal and combines the strength of standard roller chains with the corrosion resistance that comes from zinc-plating Zinc-plating of all components prior to assembly promotes uniform coverage during the plating process Zinc-plating is more cost-effective than nickel-plating.

Application

Zinc-plated chains are typically used in outdoor applications and where there is exposure to sea/salt water environments.

zinc-plated

Dacrotized chains

Dacrotizing is a process of metal coating The compositions are proprietary water based coating dispersions containing metal oxides, metallic zinc and aluminium flakes The zinc and aluminium platelets align themselves in multiple layers forming a metallic silver gray coating Overlapping zinc and aluminium flakes provide an excellent protective barrier and the zinc corrodes to protect the steel Due to the concentration of aluminum within the coating, the result is good bi-metallic corrosion resistance Damaged areas in the coating will fill with zinc oxides and carbonates, thus repairing itself The dacrotizing process can be applied to numerous types of chains For additional information, contact SKF

Application

These chains are suitable for extremely corrosive environments without loss of strength.

dacrotized
Dacrotised-and-plated-chains

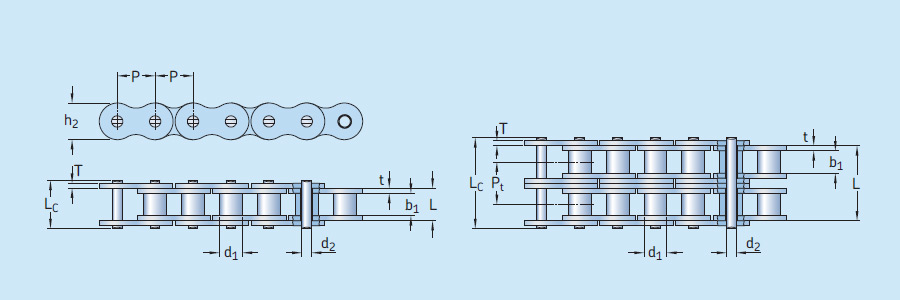

SKF Xtra Corrosion Resistant Chains

Chain number Dimensions Ultimate tensile strength Weight per meter Designation
Pitch Roller diameter Width between inner plates Pin diameter Pin length Inner plate height Plate thickness
P d1 max b1 min d2 max L max LC max h2 max t max T max Q min q
– mm kN kg/m –
25-1SS1 6,350 3,30 3,18 2,31 7,90 8,40 6,00 0,80 0,80 2,5 0,15 PHC 25-1SS…
35-1SS1 9,525 5,08 4,77 3,58 12,40 13,17 9,00 1,30 1,30 5,5 0,33 PHC 35-1SS…
40-1SS 12,700 7,95 7,85 3,96 16,60 17,80 12,00 1,50 1,50 9,6 0,63 PHC 40-1SS…
41-1SS 12,700 7,77 6,25 3,58 13,75 15,00 9,91 1,30 1,30 6,0 0,46 PHC 41-1SS…
50-1SS 15,875 10,16 9,40 5,08 20,70 22,20 15,09 2,03 2,03 15,2 1,03 PHC 50-1SS…
60-1SS 19,050 11,91 12,57 5,94 25,90 27,70 18,00 2,42 2,42 21,7 1,51 PHC 60-1SS…
80-1SS 25,400 15,88 15,75 7,92 32,70 35,00 24,00 3,25 3,25 38,9 2,62 PHC 80-1SS…
100-1SS 31,750 19,05 18,90 9,53 40,40 44,70 30,00 4,00 4,00 60,0 3,94 PHC 100-1SS…
120-1SS 38,100 22,23 25,22 11,10 50,30 54,30 35,70 4,80 4,80 72,5 5,72 PHC 120-1SS…
140-1SS 44,450 25,40 25,22 12,70 54,40 59,00 41,00 5,60 5,60 94,0 7,70 PHC 140-1SS…
04B-1SS 6,000 4,00 2,80 1,85 6,80 7,80 5,00 0,60 0,60 2,0 0,11 PHC 04B-1SS…
05B-1SS 8,000 5,00 3,00 2,31 8,20 8,90 7,10 0,80 0,80 3,5 0,20 PHC 05B-1SS…
06B-1SS2 9,525 6,35 5,72 3,28 13,15 14,10 8,20 1,30 1,30 6,2 0,41 PHC 06B-1SS…
08B-1SS 12,700 8,51 7,75 4,45 16,70 18,20 11,80 1,60 1,60 12,0 0,70 PHC 08B-1SS…
10B-1SS 15,875 10,16 9,65 5,08 19,50 20,90 14,70 1,70 1,70 14,5 0,94 PHC 10B-1SS…
12B-1SS 19,050 12,07 11,68 5,72 22,50 24,20 16,00 1,85 1,85 18,5 1,16 PHC 12B-1SS…
16B-1SS 25,400 15,88 17,02 8,28 36,10 37,40 21,00 4,15 3,10 40,0 2,73 PHC 16B-1SS…
20B-1SS 31,750 19,05 19,56 10,19 41,30 45,00 26,40 4,50 3,50 59,0 3,73 PHC 20B-1SS…
24B-1SS 38,100 25,40 25,40 14,63 53,40 57,80 33,20 6,00 4,80 104,0 7,20 PHC 24B-1SS…
32B-1SS 50,800 29,21 30,99 17,81 66,00 71,00 42,00 7,00 6,00 150,0 10,22 PHC 32B-1SS…
Attachments-A-1-K-1

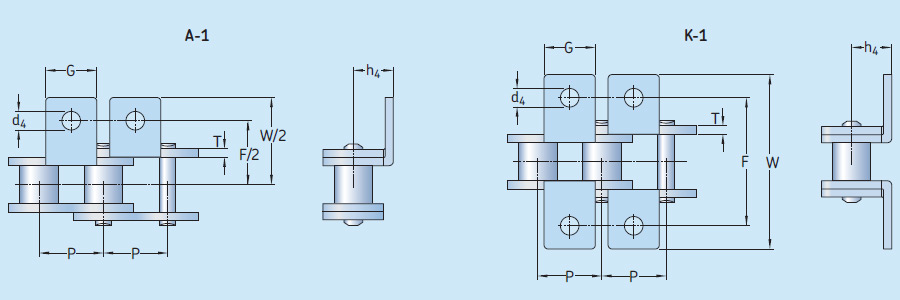

Attachments A-1, K-1

ANSI Chain number BS/ISO Chain number Dimensions Designation
P G F W T h4 d4
- - mm –
35-1 06C-1 9,53 7,90 19,00 28,60 1,30 6,35 3,40 PHC 35-1…
40-1 08A-1 12,70 9,50 25,40 35,20 1,50 7,90 3,40 PHC 40-1…
41-1 085-1 12,70 9,50 24,00 33,40 1,30 6,90 3,60 PHC 41-1…
50-1 10A-1 15,88 12,70 31,75 46,20 2,03 10,30 5,50 PHC 50-1…
60-1 12A-1 19,05 15,90 38,10 55,60 2,42 11,90 5,50 PHC 60-1…
80-1 16A-1 25,40 19,10 50,80 64,80 3,25 15,90 6,80 PHC 80-1…
100-1 20A-1 31,75 25,40 63,50 87,30 4,00 19,80 9,20 PHC 100-1…
120-1 24A-1 38,10 28,60 76,20 108,50 4,80 23,00 9,80 PHC 120-1…
140-1 28A-1 44,45 34,90 88,90 123,00 5,60 28,60 11,40 PHC 140-1…
160-1 32A-1 50,80 38,10 101,60 142,80 6,40 31,75 13,10 PHC 160-1…
200-1 40A-1 63,50 50,80 127,00 179,00 8,00 42,88 16,30 PHC 200-1…
– 06B-1* 9,53 8,00 19,04 27,00 1,30 6,50 3,50 PHC 06B-1…
– 08B-1 12,70 9,50 25,40 36,40 1,60 8,90 4,50 PHC 08B-1…
– 10B-1 15,88 14,30 31,75 44,60 1,70 10,31 5,30 PHC 10B-1…
- 12B-1 19,05 16,00 38,10 52,40 1,85 13,46 6,40 PHC 12B-1…
- 16B-1 25,40 19,10 50,80 72,60 3,10 15,88 6,40 PHC 16B-1…
- 20B-1 31,75 35,00 63,50 100,50 3,50 19,80 9,00 PHC 20B-1…
- 24B-1 38,10 30,00 76,20 108,40 4,80 26,67 10,50 PHC 24B-1…
– 28B-1 44,45 35,00 88,90 123,00 6,00 28,58 13,10 PHC 28B-1…
- 32B-1 50,80 38,10 101,60 142,80 6,00 31,75 13,10 PHC 32B-1…
Attachments-SA-1-M1-SK-1-M1

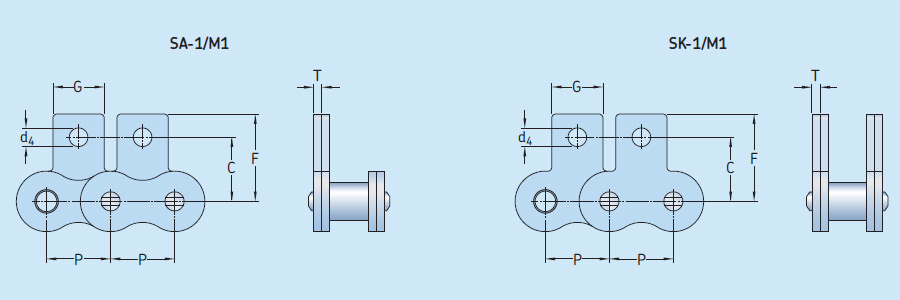

Attachments SA-1/M1, SK-1/M1

ANSI Chain number BS/ISO Chain number Dimensions Designation
P G C F T d4
- - mm –
35-1 06C-1 9,53 7,90 9,50 14,55 1,30 3,40 PHC 35-1…
40-1 08A-1 12,70 9,50 12,70 19,05 1,50 3,40 PHC 40-1…
41-1 085-1 12,70 9,50 11,85 16,55 1,30 3,60 PHC 41-1…
50-1 10A-1 15,88 12,70 15,90 25,25 2,03 5,50 PHC 50-1…
60-1 12A-1 19,05 15,90 18,30 29,33 2,42 5,50 PHC 60-1…
80-1 16A-1 25,40 19,10 24,60 34,70 3,25 6,80 PHC 80-1…
100-1 20A-1 31,75 25,40 31,80 43,30 4,00 9,20 PHC 100-1…
120-1 24A-1 38,10 28,60 36,50 51,60 4,80 9,80 PHC 120-1…
140-1 28A-1 44,45 34,90 44,50 62,00 5,60 11,40 PHC 140-1…
160-1 32A-1 50,80 38,10 50,80 69,85 6,40 13,10 PHC 160-1…
200-1 40A-1 63,50 50,80 63,50 88,90 8,00 16,30 PHC 200-1…
– 06B-1* 9,53 8,00 9,52 13,50 1,30 3,50 PHC 06B-1…
– 08B-1 12,70 9,50 13,35 18,90 1,60 4,30 PHC 08B-1…
– 10B-1 15,88 14,30 16,50 22,95 1,70 5,30 PHC 10B-1…
– 12B-1 19,05 16,00 21,45 28,60 1,85 6,40 PHC 12B-1…
– 16B-1 25,40 19,10 23,15 34,00 3,10 6,40 PHC 16B-1…
– 20B-1 31,75 35,00 30,50 45,70 3,50 9,00 PHC 20B-1…
Attachments-WA-1-WA-2-WK-1-WK-2

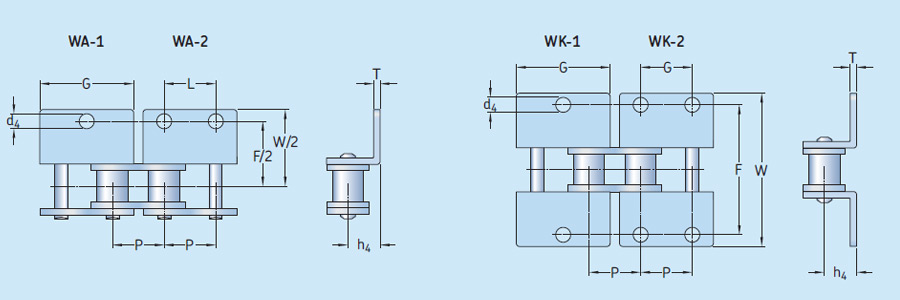

Attachments WA-1, WA-2, WK-1, WK-2

ANSI Chain number BS/ISO Chain number Dimensions Designation
P G L F W T h4 d4
- - mm –
35-1 06C-1 9,53 17,32 9,53 19,00 28,60 1,30 6,35 2,80 PHC 35-1…
40-1 08A-1 12,70 23,00 12,70 25,40 35,60 1,50 7,90 3,40 PHC 40-1…
41-1 085-1 12,70 22,30 12,70 24,00 35,00 1,30 7,20 4,85 PHC 41-1…
50-1 10A-1 15,88 28,80 15,88 31,75 46,80 2,03 10,30 5,50 PHC 50-1…
60-1 12A-1 19,05 34,65 19,05 38,10 56,40 2,42 11,90 5,50 PHC 60-1…
80-1 16A-1 25,40 45,90 25,40 50,80 73,20 3,25 15,90 6,80 PHC 80-1…
100-1 20A-1 31,75 57,65 31,75 63,50 89,80 4,00 19,80 9,20 PHC 100-1…
120-1 24A-1 38,10 69,30 38,10 76,20 108,80 4,80 23,00 9,80 PHC 120-1…
140-1 28A-1 44,45 80,45 44,45 88,90 123,00 5,60 28,60 11,40 PHC 140-1…
160-1 32A-1 50,80 92,00 50,80 101,60 142,80 6,40 31,75 13,10 PHC 160-1…
200-1 40A-1 63,50 115,50 63,50 127,00 179,00 8,00 42,88 16,30 PHC 200-1…
- 08B-1 12,70 24,00 12,70 25,40 36,40 1,60 8,90 4,30 PHC 08B-1…
- 10B-1 15,88 29,58 15,88 31,80 44,60 1,70 10,31 5,30 PHC 10B-1…
- 12B-1 19,05 34,05 19,05 38,10 52,00 1,85 13,46 6,40 PHC 12B-1…
- 16B-1 25,40 46,40 25,40 50,80 72,60 3,10 15,88 6,40 PHC 16B-1…
- 20B-1 31,75 58,10 31,75 63,00 100,50 3,50 19,80 9,00 PHC 20B-1…
- 24B-1 38,10 71,30 38,10 76,20 108,40 4,80 26,67 10,50 PHC 24B-1…
- 28B-1 44,45 81,10 44,45 88,90 123,00 6,00 28,58 13,10 PHC 28B-1…
- 32B-1 50,80 92,80 50,80 101,60 142,80 6,00 31,75 13,10 PHC 32B-1…
Attachments-SA-1-M1-SK-1-M1

Attachments WSA-1, WSA-2, WSK-1, WSK-2

ANSI Chain number BS/ISO Chain number Dimensions Designation
P G L C F T d4
- - mm –
35-1 06C-1 9,53 17,32 9,53 9,50 14,55 1,30 2,80 PHC 35-1…
40-1 08A-1 12,70 23,00 12,70 12,70 17,40 1,50 3,40 PHC 40-1…
41-1 085-1 12,70 21,20 12,70 11,85 16,55 1,30 3,60 PHC 41-1…
50-1 10A-1 15,88 28,80 15,88 15,90 23,05 2,03 5,50 PHC 50-1…
60-1 12A-1 19,05 34,65 19,05 18,30 26,86 2,42 5,50 PHC 60-1…
80-1 16A-1 25,40 45,90 25,40 24,60 35,45 3,25 6,80 PHC 80-1…
100-1 20A-1 31,75 57,65 31,75 31,80 44,00 4,00 9,20 PHC 100-1…
120-1 24A-1 38,10 69,30 38,10 36,50 51,60 4,80 9,80 PHC 120-1…
140-1 28A-1 44,45 80,45 44,45 44,50 62,00 5,60 11,40 PHC 140-1…
160-1 32A-1 50,80 92,00 50,80 50,80 69,85 6,40 13,10 PHC 160-1…
200-1 40A-1 63,50 115,50 63,50 63,50 88,90 8,00 16,30 PHC 200-1…
– 08B-1 12,70 23,30 12,70 13,35 18,90 1,60 4,30 PHC 08B-1…
– 10B-1 15,88 29,58 15,88 16,50 22,95 1,70 5,30 PHC 10B-1…
– 12B-1 19,05 34,05 19,05 21,45 28,60 1,85 6,40 PHC 12B-1…
– 16B-1 25,40 46,40 25,40 23,15 34,00 3,10 6,40 PHC 16B-1…
– 20B-1 31,75 58,10 31,75 30,50 45,70 3,50 9,00 PHC 20B-1…
