AML 25-400mm²

  • Lugs

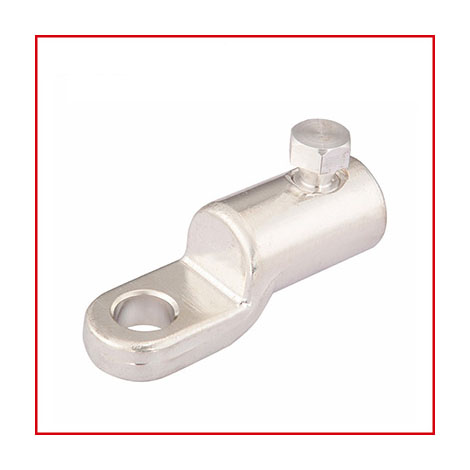

  • AML 25-400mm²

Description:

  • Wide application range.
  • Compact design,requires little installation space.
  • Can be used with almost every type of conductor and material.
  • Torque-controlled shear-head bolts guarantee a good electrical contact.
  • Easy installation with standard socket spanner.

Characteristics:

  • Total cross-section: 25-400 mm
  • Pr-engineered design for perfect fit in medium voltage cable accessories up to 42 kV
  • Lugs are suitable for out door and indoor applications
  • Connector and lug bodies are made of a high-tensile,tin plated aluminium alloy
  • Lugs are suitable for outdoor and indoorapplications and are available with different hole sizes
lugs

Technical Data

Cable Size(mm²) Bolt Size Code Dimension (mm) Bolt Quantity
B I AF

25-95		 M12 AML25/95-13
24
60
13
1
M16 AML25/95-17

35-150		 M12 AML35/150-13
28
86
16
1
M16 AML35/150-17


95-240		 M12 AML120/300-13

33

112

19

2
M16 AML120/300-17
M20 AML95/240-21

120-300		 M12 AML120/300-13
37
115
24
2
M16 AML120/300-17


185-400		 M12 AML185/240-13

42

137

24

3
M16 AML185/240-17
M20 AML185/240-21
