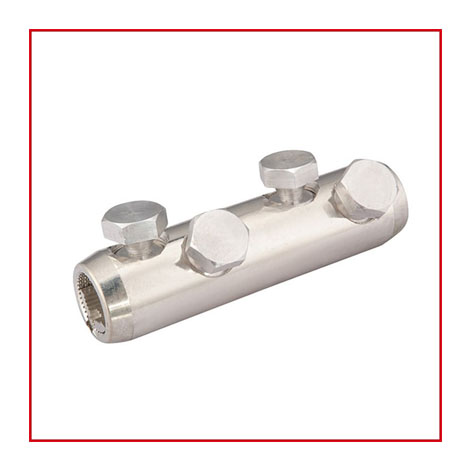

Description:
- Wide application range.
- Compact design,requires little installation space.
- Can be used with almost every type of conductor and material.
- Torque-controlled shear-head bolts guarantee a good electrical contact.
- Easy installation with standard socket spanner.
Characteristics:
- Total cross-section: 25-400 mm
- Pr-engineered design for perfect fit in medium voltage cable accessories up to 42 kV
- Lugs are suitable for out door and indoor applications.
- Connector and lug bodies are made of a high-tensile,tinplate aluminium alloy.
- Connection between copper and aluminium conductors is possible.
- Also available without wire stop,part number with "U".
Technical Data
| Nominal Cross section (mm²) |
Code |
Dimension (mm) |
Bolt Quantity |
| 25-95 |
AMB25/95 |
24 |
65 |
13 |
2 |
| 35-100 |
AMB55/150 |
28 |
80 |
16 |
2 |
| 95-240 |
AMB95/240 |
33 |
125 |
19 |
4 |
| 120-300 |
AMB120/300 |
37 |
140 |
24 |
4 |
| 185-400 |
AMB185/400 |
42 |
170 |
24 |
6 |
