CG is an established name synonymous with rotating machines. Our manufacturing unit located at Ahmednagar (Maharashra), India, manufactures DC motors up to 1500 kW.

Electrical-motor

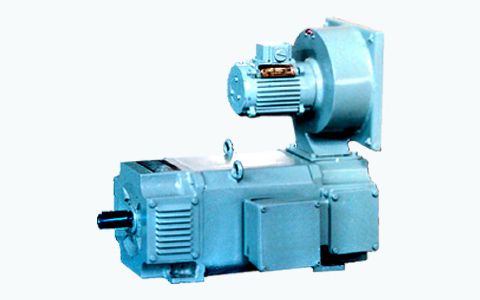

DC Motors

Fully Laminated Yoke construction offering excellent commutation:
Suitable for 6 pulse Thyristor power supply
Skewed rotor construction for ensuring low noise
VPI for armature winding for ensuring high insulation strength
High dynamic response
Compact, low weight and highly energy efficient product
Constant/Uniform Pressure Brush Holders
Easy fitting and retro-filling of filters

Technical Specs

Rang	2.2 kW to 1500 kW
Frame	IEC 100 to 630
Armature Voltage	440 V Others on request
Field Voltage	220 V Others on request
Excitation Type	SHUNT/SERIES
Mounting	Foot/Flange/Face
RPM	1500 RPM, Others on request
Protection	IP 23 Others on request
Tacho Mtg provision	DTG 400 Others on request
Insulation	Class F upto 132, Class H above 160
