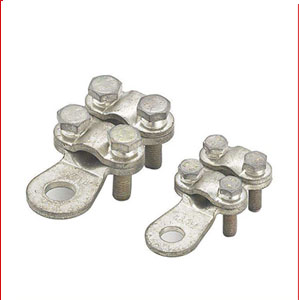

1.It is suitable for transition connection of the electric appliances of indoors distributing device and kinds of wire cables.
2. It adopts T2 red copper, the surface adopts nickle plating.
1.It is suitable for transition connection of the electric appliances of indoors distributing device and kinds of wire cables.
2. It adopts T2 red copper, the surface adopts nickle plating.
Code |
Cable Size (mm²) |
Dimension (mm) | ||||
| L | A | B | D | M | ||
| WCJB-1 | 16-25 | 39 | 16 | 25 | 8.5 | 5 |
| WCJB-2 | 16-25 | 45 | 18 | 22 | 8.5 | 5 |
| WCJB-3 | 25-35 | 52 | 21 | 24 | 10.5 | 5 |
| WCJB-4 | 50-70 | 61 | 23 | 31 | 10.5 | 6 |
| WCJB-5 | 70-95 | 69 | 23 | 35 | 10.5 | 6 |
| WCJB-6 | 95-120 | 73 | 27 | 41 | 13.5 | 8 |
| WCJB-7 | 120-150 | 74 | 28 | 42 | 13.5 | 8 |
| WCJB-8 | 150-185 | 76 | 28 | 42 | 13.5 | 8 |
| WCJB-9 | 185-240 | 80 | 30 | 44 | 13.5 | 8 |
