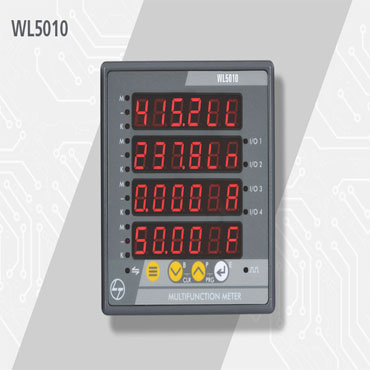

Advanced Multifunction Meter

These are high-end multi-function meters with individual harmonics and datalog.

Parameters:

V, A, F, kW, KVA, kVAr, kWh, kVAh, kVArh, PF, Runhr, Onhr, Interupts, Phase angle, THD, Neutral current, Max Demand (with RTC), k factor
Bi-directional (Import-Export)
Events (high-low) with time stamp
Individual Harmonics up to 31st.
Datalog of 8MB

V, A, F, kW, KVA, kVAr, kWh, kVAh, kVArh, PF, Runhr, Onhr, Interupts, Phase angle, THD, Neutral current, Max Demand (with RTC), k factor
Bi-directional (Import-Export)
Events (high-low) with time stamp
Individual Harmonics up to 31st.

Accuracy Class 1 as per IEC 62053-21 and Class 0.5, 0.5S, 0.2, 0.2S as per IEC 62053-22
True RMS measurement
Expert in Load monitoring
Password protection provision for security
THD for Voltage and Current (31st Individual harmonics in 5000 series)
Phase wise Voltage & Current wave forms in LCD meter
Site selectable for 3 Phase 4 wire, 3 Phase 3 wire, 1 Phase
Maximum Demand measurement with Real Time Clock in 4440, 5000 & 5010 series
Analog output can be independently programmed for 0-20 / 4-20 mA configurable for
VLL, A, F, W, PF, VA.
Data logging provision is available in 5000 series
Auto scrolling and freeze mode for constant single page viewing available
Terminals with sealing provision (optional)
Direct access key for Basic parameters, Power and Energy parameters
My Favourite screen option for user selectable parameters in LCD series
